TechWorks™ Corner Frames and Shelves

Mayline TechWorks™ Adaptable Workstations
Modular…Durable…Flexible…TechWorks™ When furniture requirements change as quickly as the technology and equipment it supports, you need adaptable workstations that easily reconfigure. TechWorks™ Benches, Organizer Frames, and Storage Accessories offer a total solution that are built to last and backed by Safco Products’s Limited Lifetime Warranty. Perfectly suited for laboratory, information technology, engineering, and manufacturing environments,
TechWorks™ does it all.



Mayline TechWorks Upper Corner Frame 713

TechWorks™ Corner Organizer Frames

  • Attach to top of TechWorks™ Corner Benches
  • Open frame design provides above work surface support for hanging accessories. Fixed height organizer frame mechanically fastens to the TechWorks Bench work surface and height adjusts with the bench. Frames allow for vertical adjustment of accessories in 1" increments. Frames ship knocked down.
  • 14-Gauge cold rolled steel construction, organizer frames hold up to 500 lbs. evenly distributed
  • Designed for horizontal and vertical integrated cable management between the frame uprights
  • Inner grommets of a corner frames do not line-up with grommets of straight Techworks Benches; order corner benches for correct alignment of grommets
  • Inner frame sections of corner units are only compatible with corner accessories
  • Shared organizer frame support brackets (Item TWSHUFKIT) are not compatible with corner frame applications
  • Mechanically fastened to worksurfaces.
  • Uprights are single slotted in 1" increments for maximum height adjustability of components
  • Organizer frames incorporate both horizontal and vertical integrated cable management options without requiring external cable channels.
  • Frames incorporate openings for bench top gussets.
  • 24" Bench use 24" Corner Frame (2-20" Frame Sections).
  • 30" Bench use 30" Corner Frame (2-26" Frame Sections).
  • 36" Bench use 36" Corner Frame (2-32" Frame Sections).
  • 48" Bench use 48" Corner Frame (2-44" Frame Sections).
    • includes 24" outer section and a 20" inner section
  • 60" Bench use 60" Corner Frame (2-56" Frame Sections) -- includes 30"W outer section and 26" inner section
  • 72" Bench use 72" Corner Frame (2-68" Frame Sections) -- includes 2-24"W outer sections and 1-20" section

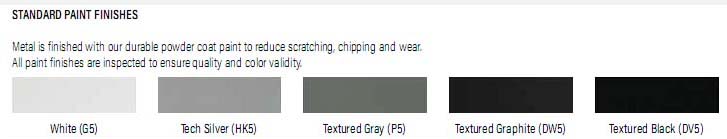

  • .Frames are available in white, tech silver, textured gray, textured graphite and textured black.TechWorks™ Frame Colors
UPPER CORNER FRAMES
TO ADD TO CART, CLICK ON PRICE
You will be prompted for your color selection for paint and finish.
Model No.
Description
Wt.
Price
TWUCF2424
 24"W x 24"H Upper Corner Frame (One 20"W frame each side) 55 lbs.
TWUCF2436
 24"W x 36"H Upper Corner Frame (One 20"W frame each side) 59 lbs.
TWUCF2448
 24"W x 48"H Upper Corner Frame (One 20"W frame each side) 59 lbs.
TWUCF3024
 30"W x 24"H Upper Corner Frame (One 26"W frame each side) 58 lbs.
TWUCF3036
 30"W x 36"H Upper Corner Frame (One 26"W frame each side) 62 lbs.
TWUCF3048
 30"W x 48"H Upper Corner Frame (One 26"W frame each side) 73 lbs.
TWUCF3624
 36"W x 24"H Upper Corner Frame (One 32"W frame each side) 60 lbs.
TWUCF3636
 36"W x 36"H Upper Corner Frame (One 32"W frame each side) 67 lbs.
TWUCF3648
 36"W x 48"H Upper Corner Frame (One 32"W frame each side) 75 lbs.
TWUCF4824
 48"W x 24"H Upper Corner Frame (One 24"W outer frame and one 20" inner frame, each side) (Order two frames for 96" W bench) 65 lbs.
TWUCF4836
 48"W x 30"H Upper Corner Frame (One 24"W outer frame and one 20" inner frame, each side) (Order two frames for 96" W bench) 72 lbs.
TWUCF4848
 48"W x 36"H Upper Corner Frame (One 24"W outer frame and one 20" inner frame, each side) (Order two frames for 96" W bench) 80 lbs.
TWUCF6024
 48"W x 24"H Upper Corner Frame (One 30"W outer frame and one 26" inner frame, each side) 68 lbs.
TWUCF6036
 48"W x 30"H Upper Corner Frame (One 30"W outer frame and one 26" inner frame, each side) 74 lbs.
TWUCF6048
 48"W x 36"H Upper Corner Frame (One 30"W outer frame and one 26" inner frame, each side) 80 lbs.
TWUFBRACE
 Back-to-Back organizer frame brace (used with two organizer frames) 7 lbs.

    Mayline TechWorks Corner Shelf 720

    TechWorks™ Corner Shelves

  • Available in 24", 30", 48" and 60" widths. Use 48"W Corner Shelf for 72 x 48"W "L" Corner Upper Frame applications.
  • Cantilevered shelves are height adjustable on 1" increments and relocatable without the use of tools for ease of adaptability.
  • Weight capacity of corner shelf is 250 lbs..

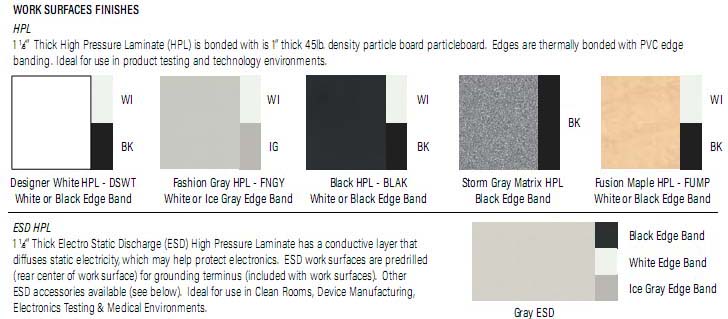

  • Available in high pressure laminate or ESD finishes.
TechWorks™ Frame Colors
12"D FRAME SHELVES
Model No.
Description
Wt.
Price
TWCS2412H3
 24"W x 12"D High Pressure Laminate Corner Shelf 32 lbs.
TWCS2412ES
 24"W x 12"D ESD Corner Shelf 32 lbs.
TWCS3012H3
 39"W x 12"D High Pressure Laminate Corner Shelf 40 lbs.
TWCS3012ES
 30"W x 12"D ESD Corner Shelf 40 lbs.
TWCS3612H3
 36"W x 12"D High Pressure Laminate Corner Shelf 47 lbs.
TWCS3612ES
 36"W x 12"D ESD Corner Shelf 47 lbs.
TWCS4812H3
 48"W x 12"D High Pressure Laminate Corner Shelf 64 lbs.
TWCS4812ES
 48"W x 12"D ESD Corner Shelf 64 lbs.
TWCS6012H3
 60"W x 12"D High Pressure Laminate Corner Shelf 80 lbs.
TWCS6012ES
 60"W x 12"D ESD Corner Shelf 80 lbs.
18"D FRAME SHELVES
Model No.
Description
Wt.
Price
TWCS2418H3
 24"W x 18"D High Pressure Laminate Corner Shelf 42 lbs.
TWCS2418ES
 24"W x 18"D ESD Corner Shelf 42 lbs.
TWCS3018H3
 30"W x 18"D High Pressure Laminate Corner Shelf 53 lbs.
TWCS3018ES
 30"W x 18"D ESD Corner Shelf 53 lbs.
TWCS3618H3
 36"W x 18"D High Pressure Laminate Corner Shelf 64 lbs.
TWCS3618ES
 36"W x 18"D ESD Corner Shelf 64 lbs.
TWCS4818H3
 48"W x 18"D High Pressure Laminate Corner Shelf 85 lbs.
TWCS4818ES
 48"W x 18"D ESD Corner Shelf 85 lbs.
TWCS6018H3
 60"W x 18"D High Pressure Laminate Corner Shelf 106 lbs.
TWCS6018ES
 60"W x 18"D ESD Corner Shelf 106 lbs.
*TechWorks ship via Freight Services.
SHIPPING IS FREE for orders Over $2300 and the freight charge in the shop cart will be waived and confirmed.
Freight Service is Dock-to-Dock in US 48.
For lift gate and/or inside delivery or for residential service,
please select the freight option for this service in the shopping cart.
Additional charges will apply.
