TechWorks™ Frames and Shelves

Mayline TechWorks™ Adaptable Workstations
Modular…Durable…Flexible…TechWorks™ When furniture requirements change as quickly as the technology and equipment it supports, you need adaptable workstations that easily reconfigure. TechWorks™ Benches, Organizer Frames, and Storage Accessories offer a total solution that are built to last and backed by Safco Products’s Limited Lifetime Warranty. Perfectly suited for laboratory, information technology, engineering, and manufacturing environments,
TechWorks™ does it all.

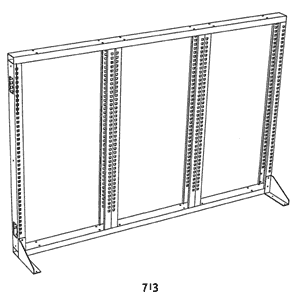

Mayline TechWorks Organizer_Frame 713
TechWorks™ Organizer Frames
  • Attach to top of TechWorks™ Benches

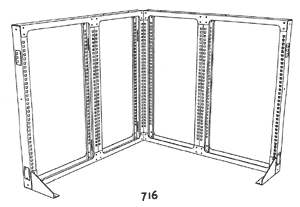

  • Organizer frames are available in 24", 36", and 48" Heights; 24", 48", 60" and 72" Widths; 30", 36", 48", 60"corner assemblies; and 72" x 48" L assemblies.
  • Mechanically fastened to worksurfaces.
  • Uprights are single slotted in 1" increments for maximum height adjustability of components.
  • 48" and higher frames have higher gusset.
  • Organizer frames incorporate both horizontal and vertical integrated cable management options without requiring external cable channels.
  • Frames incorporate openings for bench top gussets.
  • 14 gauge cold rolled steel construction, unit supports a maximum load rating of 400 lbs. (evenly balanced, cantilevered on one side).
  • Back-to-back applications with shared frame require 733 kit
  • Frames are available in wnite, tech silver, textured gray, textured graphite and textured black.TechWorks™ Colors
TechWorks™ Technical Workstations
TO ADD TO CART, CLICK ON PRICE
You will be prompted for your color selection for paint and finish.
ORGANIZER FRAMES
Model No.
Description
Wt.
Price
TWUF2424
 24"W x 24"H Upper Frame 20 lbs.
TWUF2436
 24"W x 36"H Upper Frame 23 lbs.
TWUF2448
 24"W x 48"H Upper Frame 25 lbs.
TWUF3024
 30"W x 24"H Upper Frame 22 lbs.
TWUF3036
 30"W x 36"H Upper Frame 24 lbs.
TWUF3048
 30"W x 48"H Upper Frame 27 lbs.
TWUF3624
 36"W x 24"H Upper Frame 24 lbs.
TWUF3636
 36"W x 36"H Upper Frame 26 lbs.
TWUF3648
 36"W x 48"H Upper Frame 29 lbs.
TWUF4824
 48"W x 24"H Upper Frame 31 lbs.
TWUF4836
 48"W x 36"H Upper Frame 35 lbs.
TWUF4848
 48"W x 48"H Upper Frame 39 lbs.
TWUF6024
 60"W x 24"H Upper Frame 42 lbs.
TWUF6036
 60"W x 36"H Upper Frame 45 lbs.
TWUF6048
 60"W x 48"H Upper Frame 51 lbs.
TWUF7224
 72"W x 24"H Upper Frame 53 lbs.
TWUF7236
 72"W x 36"H Upper Frame 59 lbs.
TWUF7248
 72"W x 48"H Upper Frame 67 lbs.

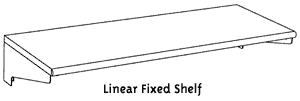

Mayline TechWorks Linear Fixed Shelf 719E
    TechWorks™ Fixed Cantilevered Shelves
  • Available in 24", 30", 48", 60" and 72" widths.
  • Weight capacity of fixed shelf is 200 lbs.
  • Available in high pressure laminate, ESD or butcher block finishes (see above finish chart).
18"D FIXED CANTILEVERED RECTANGULAR SHELVES
Model No.
Description
Wt.
Price
TWFS2418H3
 24"W x 18"D High Pressure Laminate Surface Fixed Shelf 29 lbs.
TWFS2418ES
 24"W x 18"D ESD Surface Fixed Shelf 29 lbs.
TWFS2418PH
 24"W x 18"D Phelonic Surface Fixed Shelf 29 lbs.
TWFS3018H3
 30"W x 18"D High Pressure Laminate Surface Fixed Shelf 37 lbs.
TWFS3018ES
 30"W x 18"D ESD Surface Fixed Shelf 37 lbs.
TWFS3018PH
 30"W x 18"D Phelonic Surface Fixed Shelf
TWFS3618H3
 36"W x 18"D High Pressure Laminate Surface Fixed Shelf 44 lbs.
TWFS3618ES
 36"W x 18"D ESD Surface Fixed Shelf 44 lbs.
TWFS3618PH
 36"W x 18"D Phelonic Surface Fixed Shelf
TWFS4818H3
 48"W x 18"D High Pressure Laminate Surface Fixed Shelf 45 lbs.
TWFS4818ES
 48"W x 18"D ESD Surface Fixed Shelf 45 lbs.
TWFS4818PH
 48"W x 18"D Phelonic Surface Fixed Shelf>
TWFS6018H3
 60"W x 18"D High Pressure Laminate Surface Fixed Shelf 53 lbs.
TWFS6018ES
 60"W x 18"D ESD Surface Fixed Shelf 53 lbs.
TWFS6018PH
 60"W x 18"D Phelonic Surface Fixed Shelf
TWFS7218H3
 72"W x 18"D High Pressure Laminate Surface Fixed Shelf 61 lbs.
TWFS7218ES
 72"W x 18"D ESD Surface Fixed Shelf 61 lbs.
TWFS7218PH
 72"W x 18"D Phelonic Surface Fixed Shelf
12"D FIXED CATILEVERED RECTANGULAR SHELVES
Model No.
Description
Wt.
Price
TWFS2412H3
 24"W x 18"D High Pressure Laminate Surface Fixed Shelf 29 lbs.
TWFS2412ES
 24"W x 18"D ESD Surface Fixed Shelf 29 lbs.
TWFS2412PH
 24"W x 18"D Phelonic Surface Fixed Shelf 29 lbs.
TWFS3012H3
 30"W x 18"D High Pressure Laminate Surface Fixed Shelf 37 lbs.
TWFS3012ES
 30"W x 18"D ESD Surface Fixed Shelf 37 lbs.
TWFS3012PH
 30"W x 18"D Phelonic Surface Fixed Shelf
TWFS3612H3
 36"W x 18"D High Pressure Laminate Surface Fixed Shelf 44 lbs.
TWFS3612ES
 36"W x 18"D ESD Surface Fixed Shelf 44 lbs.
TWFS3612PH
 36"W x 18"D Phelonic Surface Fixed Shelf
TWFS4812H3
 48"W x 18"D High Pressure Laminate Surface Fixed Shelf 45 lbs.
TWFS4812ES
 48"W x 18"D ESD Surface Fixed Shelf 45 lbs.
TWFS4812PH
 48"W x 18"D Phelonic Surface Fixed Shelf
TWFS6012H3
 60"W x 18"D High Pressure Laminate Surface Fixed Shelf 53 lbs.
TWFS6012ES
 60"W x 18"D ESD Surface Fixed Shelf 53 lbs.
TWFS6012PH
 60"W x 18"D Phelonic Surface Fixed Shelf
TWFS7212H3
 72"W x 18"D High Pressure Laminate Surface Fixed Shelf 61 lbs.
TWFS7212ES
 72"W x 18"D ESD Surface Fixed Shelf 61 lbs.
TWFS7212PH
 72"W x 18"D Phelonic Surface Fixed Shelf

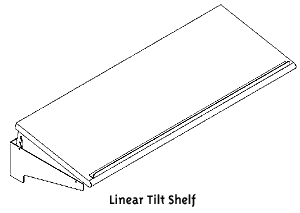

Mayline TechWorks Linear Tilt Shelf_718T
18"D TILTED CANTILEVERED FRAME SHELVES
  • Cantilevered shelves are height adjustable on 1" increments and relocatable without the use of tools for ease of adaptability.
  • Tilt shelves have full-length safety lips to prevent forward slippage of stored equipment.
  • Tilt shelves offer an ergonomic solution to support monitors and equipment. Shelves are adjustable in increments of 5 degrees from 0-15.
  • Weight capacity of tilt shelf is 200 lbs.
18"D TILTED CANTILEVERED RECTANGULAR SHELVES
Model No.
Description
Wt.
Price
TWTS2418H3
 24"W x 18"D High Pressure Laminate Tilt Shelf 29 lbs.
TWTS2418ES
 24"W x 18"D ESD Tilt Shelf 29 lbs.
TWTS3018H3
 30"W x 18"D High Pressure Laminate Tilt Shelf 37 lbs.
TWTS3018ES
 30"W x 18"D ESD Tilt Shelf 37 lbs.
TWTS3618H3
 36"W x 18"D High Pressure Laminate Tilt Shelf 44 lbs.
TWTS3618ES
 36"W x 18"D ESD Tilt Shelf 44 lbs.
TWTS4818H3
 48"W x 18"D High Pressure Laminate Tilt Shelf 45 lbs.
TWTS4818ES
 48"W x 18"D ESD Tilt Shelf 45 lbs.
TWTS6018H3
 60"W x 18"D High Pressure Laminate Tilt Shelf 53 lbs.
TWTS6018ES
 60"W x 18"D ESD Tilt Shelf 53 lbs.
TWTS7218H3
 72"W x 18"D High Pressure Laminate Tilt Shelf 61 lbs.
TWTS7218ES
 72"W x 18"D ESD Tilt Shelf 61 lbs.

*TechWorks ship via Freight Services.
SHIPPING IS FREE for orders Over $2300 and the freight charge in the shop cart will be waived and confirmed.
Freight Service is Dock-to-Dock in US 48.
For lift gate and/or inside delivery or for residential service,
please select the freight option for this service in the shopping cart.
Additional charges will apply.
