TechWorks™ Accessories

Mayline TechWorks™ Adaptable Workstations
Modular…Durable…Flexible…TechWorks™ When furniture requirements change as quickly as the technology and equipment it supports, you need adaptable workstations that easily reconfigure. TechWorks™ Benches, Organizer Frames, and Storage Accessories offer a total solution that are built to last and backed by Safco Products’s Limited Lifetime Warranty. Perfectly suited for laboratory, information technology, engineering, and manufacturing environments,
TechWorks™ does it all.

TechWorks™ Accessories
TO ADD TO CART, CLICK ON PRICE
You will be prompted for your color selection for paint and finishes.
*TechWorks ship via Freight Services.
SHIPPING IS FREE for Orders Over $1850. Orders under $1850 are charged a Flat Fee of $150.00
Freight Service is Dock-to-Dock in US 48.
For lift gate and/or inside delivery or for residential service,
please select the freight option for this service in the shopping cart.
Additional charges will apply.
Mayline TechWorks Part Bin Panel Part Bin Panels:
  • 24", 30", 36", 48", 60" and 72"W organizer frame sizes accept multiple bin strips which can interconnect.
  • Accept optional part bins from multiple vendors - contact customer service for compatibility.
  • Hook on components cannot be placed in front of bin strips.
PART BINS PANELS
Model No.
Description
Wt.
Price
758
 24"W x 3"H Part Bin Panels 3 lbs.
759
 30"W x 3"H Part Bin Panels 4 lbs.
75901
 36"W x 3"H Part Bin Panels 5 lbs.
Mayline TechWorks Freestanding Storage C8817F Freestanding Storage:
Mayline TechWorks Overhead Storage 763 Overhead Storage:
STORAGE CABINETS
Model No.
Description
Wt.
Price

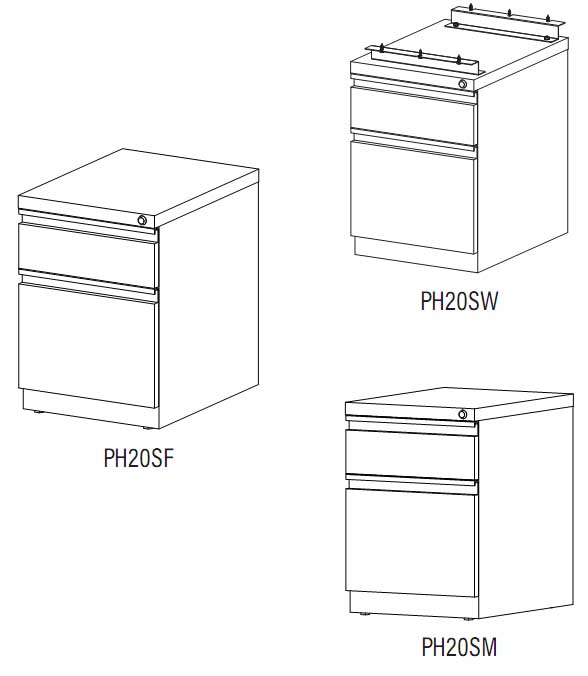

PH20SM
 Box/File mobile pedestal, 15"W x 20"D x 21 3/4"H 60 lbs.
PH20SF
 Box/File fixed pedestal, 15"W x 20"D x 21 3/4"H 60 lbs.
PH20SW
 Box/File suspended pedestal, 15"W x 20"D x 21 3/4"H (for mounting under TechWorks bench surface) 55 lbs.
CSH20
 Black faux leather cushion transforms pedestal ino a seat 6 lbs.
763
 24"W x 12"D x 16"H Overhead Lockable Storage Bin. 37 lbs.
764
 30"W x 12"D x 16"H Overhead Lockable Storage Bin. 50 lbs.
76402
 36"W x 12"D x 16"H Overhead Lockable Storage Bin. 62 lbs.

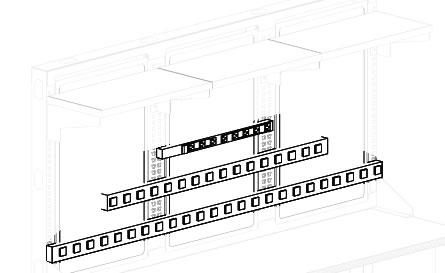

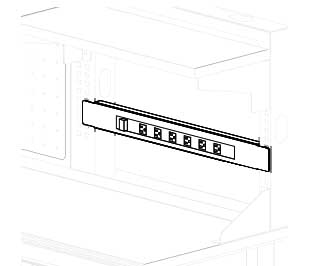

Mayline TechWorks power strip Power Strips:
  • Mount horizontally to organizer frame.
  • Available in 24", 48", 60" and 72" widths.
  • 48" widths do not fit on corner organizer frames.
  • Mounting hardware included
POWER STRIPS
Model No.
Description
Wt.
Price
765
 Power Strip 24"W 15amp power strip, 8 outlets, 15' cord 3 lbs.
767
 Power Strip 48"W 15amp power strip, 16 outlets, 15' cord 4 lbs.
768
 Power Strip 60"W 15amp power strip, 20 outlets, 15' cord 5 lbs.
769
 Power Strip 72"W 15amp power strip, 24 outlets, 15' cord 6 lbs.

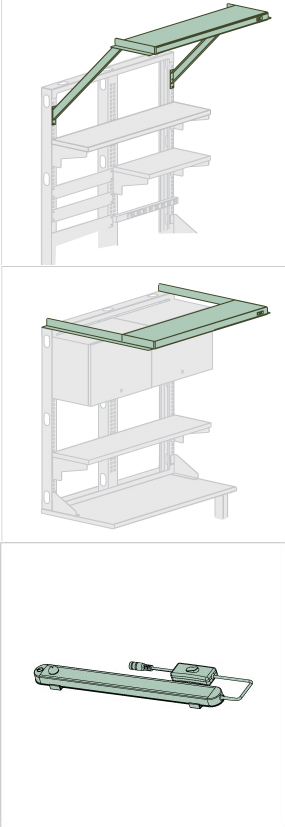

Mayline TechWorks lights Lights:
  • Allow 15" of clearance above frame for height adjustable lights: 724, 725 and 726.
  • Overhead lights include an on/off switch.
  • Adjustable height overhead lights may interfere with the placement of components at the uppermost mounting position.
  • Overhead lights include a 9 foot power cord.
  • UL and CSA approved.
LIGHTS
Model No.
Description
Wt.
Price
72436L
 36"W 4 Bulb Ballast Adjustable Overhead Light 50 lbs.
724L
 48"W 4 Bulb Ballast Adjustable Overhead Light 36 lbs.
725L
 60"W 4 Bulb Ballast Adjustable Overhead Light 41 lbs.
726L
 72"W 4 Bulb Ballast Adjustable Overhead Light 47 lbs.
79136L
 36"W 4 Bulb Magnetic Ballast Fixed Height Overhead Light 36 lbs.
791L
 48"W 4 Bulb Magnetic Ballast Fixed Height Overhead Light 36 lbs.
792L
 60"W 4 Bulb Magnetic Ballast Fixed Height Overhead Light 41 lbs.
793L
 72"W 4 Bulb Magnetic Ballast Fixed Height Overhead Light 47 lbs.

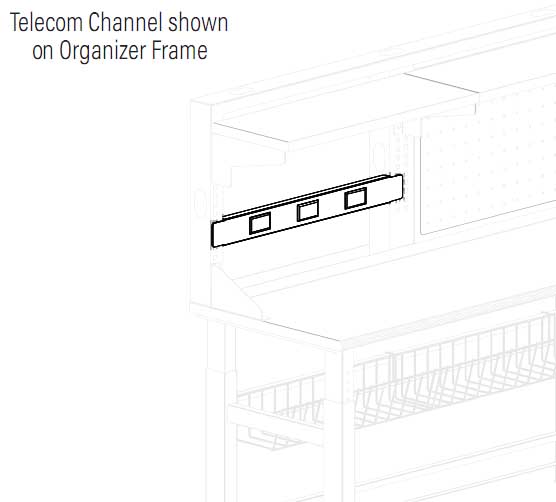

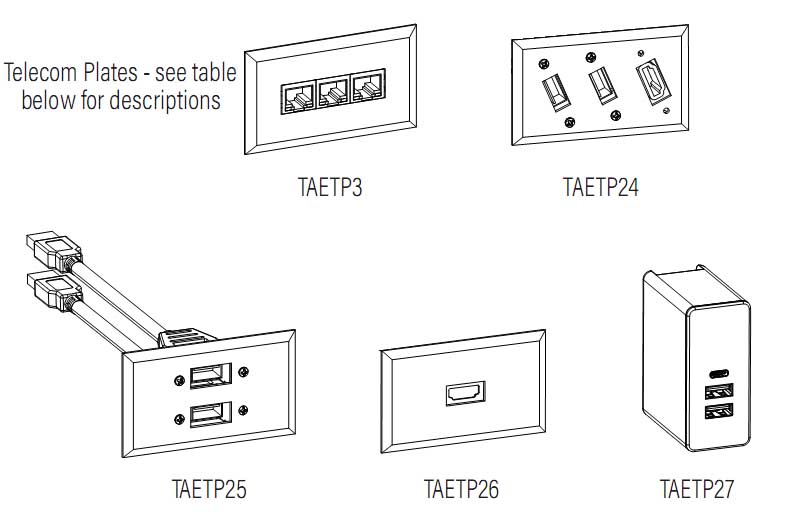

Mayline TechWorks Telecom Channel TWDA24 Telecom Channel:
  • Accepts up to 3 Data Telecom Plate Kits.
  • Two blank Telecome Plates included to cover unused openings.
  • Attaches to organizer frame.
Mayline TechWorks Cable Trough 775 Cable Trough:
  • Mounts between frame uprights.
  • Available in 24" and 30" widths.
Mayline TechWorks Vertical Cable Organizer 782 Vertical Cable Organizer:
  • Mounts to interior of frame uprights.
  • Available in 24", 36" and 48" heights.
CABLE MANAGEMENT
Model No.
Description
Wt.
Price
TWDA24
 24"W x 3"H Telecom Channel 4 lbs.
TWDA30
 30"W x 3"H Telecom Channel 4 lbs.
TWDA36
 36"W x 3"H Telecom Channel 5 lbs.
775
 24"W Horizontal Cable Management Trough 2 lbs.
776
 30"W Horizontal Cable Management Trough 2.5 lbs.

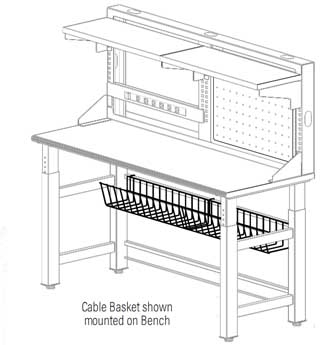

777
 48"W Horizontal Cable Management Basket 4 lbs.
778
 60"W Horizontal Cable Management Basket 7 lbs.
779
 72"W Horizontal Cable Management Basket 8 lbs.
780
 24"H Vertical Cable Management Organizer 2 lbs.
781
 36"H Vertical Cable Management Organizer 2.5 lbs.
782
 48"H Vertical Cable Management Organizer 3 lbs.
TechWorks_Rack_Mount_adapters_784 Rack Mount Adapters:
  • Provides 19" EIA Standard rack mounting between uprights.
  • Standard with cage nuts for mounting equipment.
RACK MOUNT ADAPTERS
Model No.
Description
Wt.
Price
783
 3 1/2" rack rail adapter set (2U) 24" spacing 2 lbs.
784
 7" rack rail adapter set (4U) 24" spacing 3 lbs.
785
 3 1/2" rack rail adapter set (2U) 30" spacing for 60"W frames 2 lbs.
786
 7" rack rail adapter set (4U) 30" spacing for 60"W frames 3 lbs.

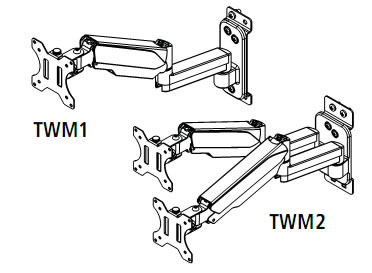

Mayline TechWorks Flat Panel Monitor Support Bracket FPD012TW Flat Panel Monitor Support Bracket:

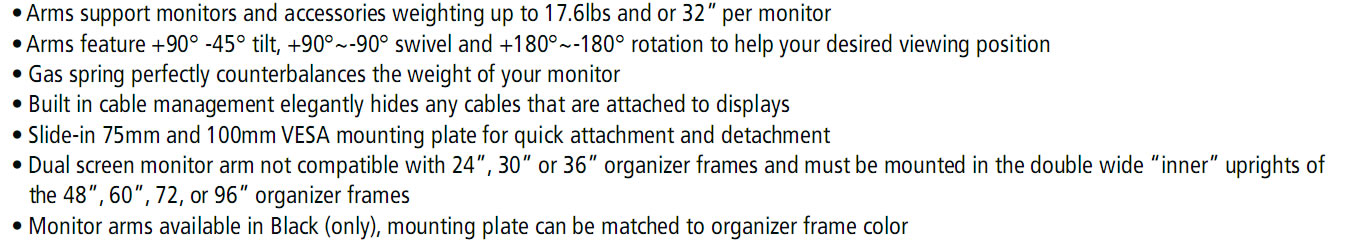

arm_specs
FLAT PANEL BRACKET
Model No.
Description
Wt.
Price
TWM1
 Single Screen Monitor Arm 6 lbs.
TWM2
 Dual Screen Monitor Arm 10 lbs.
Mayline TechWorks ESD Accessories ESD Accessories:
  • Must be used in accordance with local electrical codes.
  • Grounding bar (lower), 789, provides common grounding point for managing multiple ground wires.
  • Wrist strap must be used with Grounding strap for proper grounding.
  • Grounding jack (upper) accommodates 4 standard banana jacks (on the end of wrist straps)
ESD ACCESSORIES
Model No.
Description
Wt.
Price
787
 ESD Wrist Wrap 2 lbs.
788
 ESD Grounding Jack 3 lbs.
789
 ESD Grounding Bar 5 lbs.
*TechWorks ship via Freight Services.
SHIPPING IS FREE for Orders Over $1850. Orders under $1850 are charged a Flat Fee of $150.00
Freight Service is Dock-to-Dock in US 48.
For lift gate and/or inside delivery or for residential service,
please select the freight option for this service in the shopping cart.
Additional charges will apply.
