Due to Da-lite's recently implemented Minimum Advertised Price policy, our pricing is too low to show. Please call (800-338-5370) or email us at biz2bizonline@live.com for our low price.

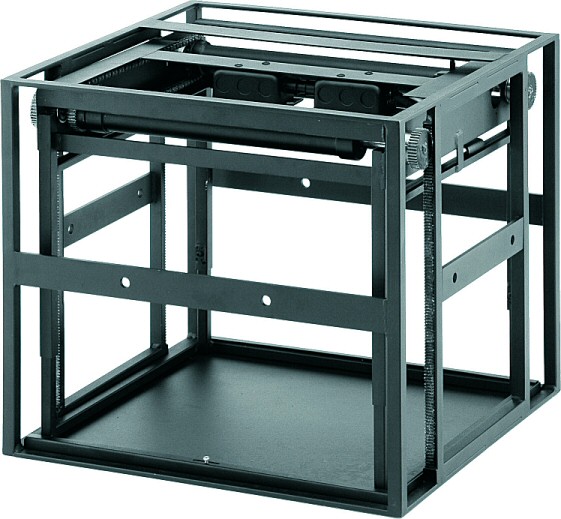

Da-Lift Motorized Projector Lift

Da-Liftda lift
          Available Models and Sizes
dimensions

Width A

Height B

Depth C

Travel D

Width E

Height F

Depth G
Da-Lift Alone
Plenum Cover Alone
Da-Lift with Plenum Cover
Model
in.
in.
in.
in.
in.
in.
in.
Weight (lbs.)
Part #
Weight (lbs.)
 Part #
Weight (lbs.)
 Part #
Da-Lift Pivot 26P
22 5/8"
15"
22"
10"
18 1/2"
10" - 17"
17 1/2"
45
8141
20
8195
 63 7466
Da-Lift Pivot 33P
22 5/8"
15"
22"
10"
18 1/2"
10" - 17"
17 1/2"
50
8142
25
8196
78
7467
Da-Lift 10M
22 5/8"
15"
22"
10"
18 1/2"
10" - 17"
17 1/2"
120
33060
35
33061
140
7371
Da-Lift 15M
22 5/8"
20"
22"
15"
18 1/2"
15" - 22"
17 1/2"
 130 89059 40 89061 155 7366
Da-Lift 15
30 3/4"
20"
34"
15"
26 1/2"
15" - 22"
28 1/2"
155
78088
47
78164
195
7367
Da-Lift 19
32 3/4"
24"
38"
19"
28 1/2"
19" - 30"
32 1/2"
 170 78089 55 78165 220 7368
Da-Lift 19L
42 3/4"
24"
48"
19"
38 1/2"
19" - 30"
42 1/2"
190
78090
81
78166
259
7369

click here for Electric Screen Accessories



  • DESCRIPTION
  • LITERATURE

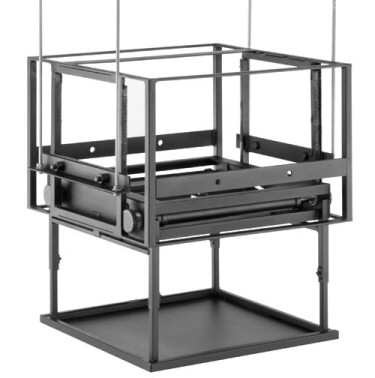

Raise or lower video projectors weighing up to 300 pounds with a push of a button.

Heavy-duty, all metal construction with rack and pinion, chain drive lift mechanism for quiet operation.

Bottom of lift is adjustable for flush installation and can be finished to match ceiling.

Complete with three position control switch with cover plate.

Optional plenum kit available where needed. Plenum covers meet plenum building codes for Da-Lite’s complete line of concealed projector lifts. .
