TechWorks™ Technical Workstations


TechWorks™ Typical Configurations

TechWorks™ Technical Workstations

FREE SHIPPING!


Mayline TechWorks™ Adaptable Workstations
Modular…Durable…Flexible…TechWorks™ When furniture requirements change as quickly as the technology and equipment it supports, you need adaptable workstations that easily reconfigure. TechWorks™ Benches, Organizer Frames, and Storage Accessories offer a total solution that are built to last and backed by Safco Products’s Limited Lifetime Warranty. Perfectly suited for laboratory, information technology, engineering, and manufacturing environments,
TechWorks™ does it all.

TechWorks™ can be configured into the ultimate collaborative workstation, providing you the flexibility to install benches at either sitting or standing heights. Its open frame design promotes team interaction. Personal work areas can be ergonomically outfitted with accessories such as monitor arms and keyboard platforms while personal storage units keep important information close at hand.With computers being used in virtually every industry, work benches are increasingly seen in offices, schools, universities, hospitals and government facilities. Safco Products’s TechWorks™ benches can meet all of their requirements, including durable ESD work benches to protect static sensitive components while organizer frames maximize vertical storage space by incorporating lockable bins, shelving and pegboards for the organization of tools, parts, and equipment. Technology is also rapidly expanding in analytical and scientific laboratory applications. Many tasks that were previously performed by hand are now being performed with high-tech instrumentation that increases lab efficiencies and provides more accurate results. TechWorks™ organizer frames incorporate integrated cable management channels both vertically and horizontally for increased cable loads and provide the ultimate flexibility as a freestanding, modular bench system that can easily be adapted to future changes in technology and workflow.For applications where weight capacity is a concern, you can rest easy with TechWorks™ Benches and Organizer Frames. Their durable design vertically stores and supports up to 1,000 lbs. of equipment on both the work surface and above surface shelves, whether on levelers or casters. Up to an additional 800 lbs. can be stored on below surface shelves when required, allowing users to create space-efficient configurations and maximize their footprint.
Click here for TechWorks™ Typical Configurations and Pricing or view individual components and pricing below.

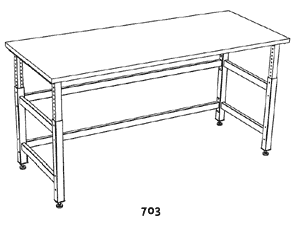

Mayline TechWorks 703 Table TechWorks™ Tables
Mayline TechWorks Organizer_Frame 713
Mayline TechWorks Upper Corner Frame 713
TechWorks™ Organizer Frames
  • Organizer frames are available in 24", 36", and 48" Heights; 48", 60" and 72" Widths; and 48" corner assemblies.
  • Uprights are single slotted in 1" increments for maximum height adjustability of components.
  • Organizer frames incorporate both horizontal and vertical integrated cable management options without requiring external cable channels.
  • 14 gauge cold rolled steel construction, unit supports a maximum load rating of 400 lbs. (evenly balanced, cantilevered on one side).
  • Organizational frames are available in textured black, textured gray or textured graphite paint colors.
  • Mechanically fastened to worksurfaces.
Mayline TechWorks Linear Tilt Shelf_718T
Mayline TechWorks Linear Fixed Shelf 719E
Mayline TechWorks Corner Shelf 720
Mayline TechWorks Table Base Shelf 721
TechWorks™ Shelves
  • Available in 24", 30", 48", 60" and 72" widths.
  • Cantilevered shelves are height adjustable on 1" increments and relocatable without the use of tools for ease of adaptability.
  • Tilt shelves have full-length safety lips to prevent forward slippage of stored equipment.
  • Tilt shelves offer an ergonomic solution to support monitors and equipment. Shelves are adjustable in increments of 5 degrees from 0-15.
  • Weight capacity of fixed and tilt shelf is 200 lbs.; corner shelf is 250 lbs.; full and partial table base shelves are 400 lbs.
  • Table Base Shelves attach to the lower or upper cross-bars on table base.
  • Table Base Shelves are 14 gauge CRS and are positional in 2 pre-set locations on base.
  • Available in melamine, high pressure laminate or ESD (Electrostatic discharge) laminate with bull nose T-mold front edge and 3mm PVC on sides and back (BLACK ONLY).
Mayline TechWorks 250100 wire keyboard holder

Mayline TechWorks 250101 dual wire keyboard holder

Mayline TechWorks 19500TA retractable keyboard platform, 19502A Optional mouse platform for 19500TA
Keyboard Options:
  • 250100 wire keyboard holder. Chrome finish.
  • 250101 dual wire keyboard holder. Chrome finish.
  • 19500TA retractable keyboard platform. 19"W x 10 1/2"D. 0° to -15° tilt, 360° swivel.
  • 19502A Optional mouse platform for 19500TA, 9"Dia., 360° swivel.
Mayline TechWorks Service Bar Service Bars:
  • Attached with wood screws to the underside of worksurfaces or shelves.
  • Includes four openings for air, gas, and vacuum fixtures.
  • Includes two cable pass through holes.
  • Most include power strip
Mayline TechWorks whiteboard 748 with 751 marker tray
Mayline TechWorks pegboard 754
Whiteboards and Peg Boards:
  • Attach between frame uprights.
  • Cannot be used on middle sections of corner organizer frames.
  • Create a finished panel appearance from front.
  • Allow hook-on components to be mounted in front of board
  • Optional marker tray for whiteboards..
Mayline TechWorks Part Bin Panel Part Bin Panels:
  • 48", 60" and 72"W organizer frame sizes accept multiple bin strips which can interconnect.
  • Accept optional part bins from multiple vendors - contact customer service for compatibility.
  • Hook on components cannot be placed in front of bin strips.
Mayline TechWorks Freestanding Storage C8817F Freestanding Storage:
  • Full width with "J" style pulls.
  • Locks standard.
  • To key pedestals alike, purchase optional keyed alike tumblers.
  • Full extension ball bearing slides on all drawers.
  • Leveling glides have 5/8" of adjustability.
  • Unique recessed base design allows casters to be added without adding additional height to the pedestal.
  • Available in textured black, textured gray or textured graphite paint colors.
Mayline TechWorks Overhead Storage 763 Overhead Storage:
Mayline TechWorks power strip Power Strips:
  • Mount horizontally to organizer frame.
  • Available in 24", 48", 60" and 72" widths.
  • 48" widths do not fit on corner organizer frames.
  • Mounting hardware included
Mayline TechWorks lights Lights:
  • Allow 15" of clearance above frame for height adjustable lights: 724, 725 and 726.
  • Overhead lights include an on/off switch.
  • Adjustable height overhead lights may interfere with the placement of components at the uppermost mounting position.
  • Overhead lights include a 9 foot power cord.
  • UL and CSA approved.
Mayline TechWorks Telecom Channel TWDA24 Telecom Channel:
  • Accepts up to 3 Data Telecom Plate Kits.
  • Two blank Telecome Plates included to cover unused openings.
  • Attaches to organizer frame.
Mayline TechWorks Cable Trough 775 Cable Trough:
  • Mounts between frame uprights.
  • Available in 24" and 30" widths.
Mayline TechWorks Wire_Basket_777 Cable Basket:
  • Mounts to table base.
  • Available in 48", 60" and 72" widths.
Mayline TechWorks Vertical Cable Organizer 782 Vertical Cable Organizer:
  • Mounts to interior of frame uprights.
  • Available in 24", 36" and 48" heights.
TechWorks_Rack_Mount_adapters_784 Rack Mount Adapters:
  • Provides 19" EIA Standard rack mounting between uprights.
  • Standard with cage nuts for mounting equipment.
Mayline TechWorks Flat Panel Monitor Support Bracket FPD012TW Flat Panel Monitor Support Bracket:
  • Compatible with VESA compliant monitors only.
  • Available with two arms only.
Mayline TechWorks ESD Accessories ESD Accessories:
  • Must be used in accordance with local electrical codes.
  • Grounding bar (lower), 789, provides common grounding point for managing multiple ground wires.
  • Wrist strap must be used with Grounding strap for proper grounding.
  • Grounding jack (upper) accommodates 4 standard banana jacks (on the end of wrist straps)

TechWorks™ Technical Workstations
TO ADD TO CART, CLICK ON PRICE
You will be prompted for your color selection for paint and finishes.

TABLES
Model No.
Description
Wt.
Price
700
48"W x 30"D Adjustable Table with low pressure laminate surface 139 lbs.
700H
48"W x 30"D Adjustable Table with high pressure laminate surface 139 lbs.
700E
48"W x 30"D Adjustable Table with ESD laminate surface 139 lbs.
700B
48"W x 30"D Adjustable Table with 1 3/4" butcher block surface 162 lbs.
701
48"W x 36"D Adjustable Table with low pressure laminate surface 150 lbs.
701H
48"W x 36"D Adjustable Table with high pressure laminate surface 150 lbs.
701E
48"W x 36"D Adjustable Table with ESD laminate surface 150 lbs.
701B
48"W x 36"D Adjustable Table with 1 3/4" butcher block surface 187 lbs.
727
60"W x 30"D Adjustable Table with low pressure laminate surface 155 lbs.
727H
60"W x 30"D Adjustable Table with high pressure laminate surface 155 lbs.
727E
60"W x 30"D Adjustable Table with ESD laminate surface 155 lbs.
727B
60"W x 30"D Adjustable Table with 1 3/4" butcher block surface 187 lbs.
702
60"W x 36"D Adjustable Table with low pressure laminate surface 170 lbs.
702H
60"W x 36"D Adjustable Table with high pressure laminate surface 170 lbs.
702E
60"W x 36"D Adjustable Table with ESD laminate surface 170 lbs.
702B
60"W x 36"D Adjustable Table with 1 3/4" butcher block surface 207 lbs.
728
72"W x 30"D Adjustable Table with low pressure laminate surface 175 lbs.
728H
72"W x 30"D Adjustable Table with high pressure laminate surface 175 lbs.
728E
72"W x 30"D Adjustable Table with ESD laminate surface 175 lbs.
728B
72"W x 30"D Adjustable Table with 1 3/4" butcher block surface 215 lbs.
703
72"W x 36"D Adjustable Table with low pressure laminate surface 185 lbs.
703H
72"W x 36"D Adjustable Table with high pressure laminate surface 185 lbs.
703E
72"W x 36"D Adjustable Table with ESD laminate surface 185 lbs.
703B
72"W x 36"D Adjustable Corner Table with butcher block surface 236 lbs.
729
48"W x 30"D Adjustable Corner Table with low pressure laminate surface 180 lbs.
729H
48"W x 30"D Adjustable Corner Table with high pressure laminate surface 180 lbs.
729E
48"W x 30"D Adjustable Corner Table with ESD laminate surface 180 lbs.
729B
48"W x 30"D Adjustable Corner Table with 1 3/4" butcher block surface 220 lbs.
704
48"W x 36"D Adjustable Corner Table with low pressure laminate surface 185 lbs.
704H
48"W x 36"D Adjustable Corner Table with high pressure laminate surface 185 lbs.
704E
48"W x 36"D Adjustable Corner Table with ESD laminate surface 185 lbs.
704B
48"W x 36"D Adjustable Corner Table with 1 3/4" butcher block surface 230 lbs.
ORGANIZER FRAMES
Model No.
Description
Wt.
Price
705
48"W x 24"H Upper Frame 31 lbs.
706
48"W x 30"H Upper Frame 35 lbs.
707
48"W x 36"H Upper Frame 39 lbs.
708
60"W x 24"H Upper Frame 42 lbs.
709
60"W x 30"H Upper Frame 45 lbs.
710
60"W x 36"H Upper Frame 51 lbs.
711
72"W x 24"H Upper Frame 53 lbs.
712
72"W x 30"H Upper Frame 59 lbs.
713
72"W x 36"H Upper Frame 67 lbs.
714
48"W x 24"H Upper Corner Frame 65 lbs.
715
48"W x 30"H Upper Corner Frame 72 lbs.
716
48"W x 36"H Upper Corner Frame 80 lbs.
SHELVES
Model No.
Description
Wt.
Price
797
24"W x 18"D Low Pressure Laminate Fixed Shelf 29 lbs.
797H
24"W x 18"D High Pressure Laminate Fixed Shelf 29 lbs.
797E
24"W x 18"D ESD Fixed Shelf 29 lbs.
797T
24"W x 18"D Low Pressure Laminate Tilt Shelf 32 lbs.
797TH
24"W x 18"D High Pressure Laminate Tilt Shelf 32 lbs.
797TE
24"W x 18"D ESD Tilt Shelf 32 lbs.
798
30"W x 18"D Low Pressure Laminate Fixed Shelf 37 lbs.
798H
30"W x 18"D High Pressure Laminate Fixed Shelf 37 lbs.
798E
30"W x 18"D ESD Fixed Shelf 37 lbs.
798T
30"W x 18"D Low Pressure Laminate Tilt Shelf 40 lbs.
798TH
30"W x 18"D High Pressure Laminate Tilt Shelf 40 lbs.
798TE
30"W x 18"D ESD Tilt Shelf 40 lbs.
717
48"W x 18"D Low Pressure Laminate Fixed Shelf 45 lbs.
717H
48"W x 18"D High Pressure Laminate Fixed Shelf 45 lbs.
717E
48"W x 18"D ESD Fixed Shelf 45 lbs.
717T
48"W x 18"D Low Pressure Laminate Tilt Shelf 47 lbs.
717TH
48"W x 18"D High Pressure Laminate Tilt Shelf 47 lbs.
717TE
48"W x 18"D ESD Tilt Shelf 47 lbs.
718
60"W x 18"D Low Pressure Laminate Fixed Shelf 55 lbs.
718H
60"W x 18"D High Pressure Laminate Fixed Shelf 55 lbs.
718E
60"W x 18"D ESD Fixed Shelf 55 lbs.
718T
60"W x 18"D Low Pressure Laminate Tilt Shelf 56 lbs.
718TH
60"W x 18"D High Pressure Laminate Tilt Shelf 56 lbs.
718TE
60"W x 18"D ESD Tilt Shelf 56 lbs.
719
72"W x 18"D Low Pressure Laminate Fixed Shelf 61 lbs.
719H
72"W x 18"D High Pressure Laminate Fixed Shelf 61 lbs.
719E
72"W x 18"D ESD Fixed Shelf 61 lbs.
719T
72"W x 18"D Low Pressure Laminate Tilt Shelf 66 lbs.
719TH
72"W x 18"D High Pressure Laminate Tilt Shelf 66 lbs.
719TE
72"W x 18"D ESD Tilt Shelf 66 lbs.
720
48"W x 18"D Low Pressure Laminate Corner Shelf 85 lbs.
720H
48"W x 18"D High Pressure Laminate Corner Shelf 85 lbs.
720E
48"W x 18"D ESD Corner Shelf 85 lbs.
721
48"W x 23"D Full Base Shelf 33 lbs.
722
60"W x 23"D Full Base Shelf 39 lbs.
723
72"W x 23"D Full Base Shelf 47 lbs.
738
48"W x 12"D Partial Base Shelf 16 lbs.
739
60"W x 12"D Partial Base Shelf 19 lbs.
740
72"W x 12"D Partial Base Shelf 22 lbs.
OPTIONS AND ACCESSORIES
Model No.
Description
Wt.
Price
250100
Wire keyboard holder. Chrome finish. 139 lbs.
250101
Dual wire keyboard holder. Chrome finish. 139 lbs.
19503TA
Combination Keyboad/Mouse Platform--Black Only. +15° to -15° tilt. 360° swivel. 19 "W x 8 1/4"D, 9" Dia. Mouse Platform 15 lbs.
730
Service bar 48" 15amp power strip, 8 outlets, 15' cord 8 lbs.
731
Service bar 60" 15amp power strip, 12 outlets, 15' cord 12 lbs.
732
Service bar 72" 15amp power strip, 16 outlets, 15' cord 14 lbs.
737
Service bar corner, no power strip 3 lbs.
TWDA24
24"W x 3"H Telecom Channel 4 lbs.
TWDA30
30"W x 3"H Telecom Channel 4 lbs.
TWDA36
36"W x 3"H Telecom Channel 5 lbs.
744
24"W x 24"H Whiteboard 6 lbs.
745
24"W x 36"H Whiteboard 7 lbs.
746
24"W x 48"H Whiteboard 8 lbs.
747
30"W x 24"H Whiteboard 7 lbs.
748
30"W x 36"H Whiteboard 8 lbs.
749
30"W x 48"H Whiteboard 9 lbs.
750
24"W Marker Tray for whiteboards 1 lbs.
751
30"W Marker Tray for whiteboards 1 lbs.
752
24"W x 24"H Peg Board 6 lbs.
753
24"W x 36"H Peg Board 7 lbs.
754
24"W x 48"H Peg Board 8 lbs.
755
30"W x 24"H Peg Board 7 lbs.
756
30"W x 36"H Peg Board 8 lbs.
757
30"W x 48"H Peg Board 9 lbs.
758
24"W x 3"H Part Bin Panels 3 lbs.
759
30"W x 3"H Part Bin Panels 4 lbs.
C8817B
Freestanding Storage B/B/F 15"W x 17 1/2"D x 28"H 50 lbs.
C8817F
Freestanding Storage F/F 15"W x 17 1/2"D x 28"H 48 lbs.
C8817M
Freestanding Storage Mobile Kit 28 lbs.
763
24"W x 12"D x 16"H Overhead Lockable Storage Bin. 37 lbs.
764
30"W x 12"D x 16"H Overhead Lockable Storage Bin. 50 lbs.
765
Power Strip 24"W 15amp power strip, 8 outlets, 15' cord 3 lbs.
767
Power Strip 48"W 15amp power strip, 16 outlets, 15' cord 4 lbs.
768
Power Strip 60"W 15amp power strip, 20 outlets, 15' cord 5 lbs.
769
Power Strip 72"W 15amp power strip, 24 outlets, 15' cord 6 lbs.
724
48"W 4 Bulb Ballast Adjustable Overhead Light 36 lbs.
725
60"W 4 Bulb Ballast Adjustable Overhead Light 41 lbs.
726
72"W 4 Bulb Ballast Adjustable Overhead Light 47 lbs.
791
48"W 4 Bulb Magnetic Ballast Fixed Height Overhead Light 36 lbs.
792
60"W 4 Bulb Magnetic Ballast Fixed Height Overhead Light 41 lbs.
793
72"W 4 Bulb Magnetic Ballast Fixed Height Overhead Light 47 lbs.
799
18"W x 4 1/2"D x 1 1/4"H Under Shelf Task Light 8 lbs.
775
24"W Horizontal Cable Management Trough 2 lbs.
776
30"W Horizontal Cable Management Trough 2.5 lbs.
777
48"W Horizontal Cable Management Basket 4 lbs.
778
60"W Horizontal Cable Management Basket 7 lbs.
779
72"W Horizontal Cable Management Basket 8 lbs.
780
24"H Vertical Cable Management Organizer 2 lbs.
781
36"H Vertical Cable Management Organizer 2.5 lbs.
782
48"H Vertical Cable Management Organizer 3 lbs.
783
3 1/2" rack rail adapter set (2U) 24" spacing 2 lbs.
784
7" rack rail adapter set (4U) 24" spacing 3 lbs.
785
3 1/2" rack rail adapter set (2U) 30" spacing for 60"W frames 2 lbs.
786
7" rack rail adapter set (4U) 30" spacing for 60"W frames 3 lbs.
FPD2TW
Flat Panel Monitor Support Bracket - Two Arms 4 lbs.
787
ESD Wrist Wrap 2 lbs.
788
ESD Grounding Jack 3 lbs.
789
ESD Grounding Bar 5 lbs.
790
Side-by-side station connector kits 1 lbs.
742
5 Caster Kit (with 2 locking) for corner units (adds 3" of height to bench), hard rubber, 250 lbs. weight capacity 9 lbs.
350221
4 Caster Kit (with 2 locking) (adds 3" of height to bench), hard rubber, 250 lbs. weight capacity 7 lbs.
*TechWorks ship via Freight Services.
SHIPPING IS FREE
Freight Service is Dock-to-Dock in US 48.
For lift gate and/or inside delivery or for residential service,
please select the freight option for this service in the shopping cart.
Additional charges will apply.

Valid XHTML 1.0 Transitional
Valid CSS!
