Integrated Screen Control

Da-Lite's line of Integrated Screen Control (ISC) has been expanded to include a multi-position RS-232 control for electric screens. This multi-position screen control offers infinite height adjustment and multiple aspect ratio control of Da-Lite Contour®, Advantage, Advantage Deluxe and Director Electrol® models. For example, the SCB-200 allows the screen to "raise by four inches" or go to a different aspect ratio. This new, broader line of products is based upon RS-232 control with the SCB-200 and can be expanded to include such options as Ethernet control with the NET-200, push button wall control with the WC-200 and infrared control with the IR-200. .

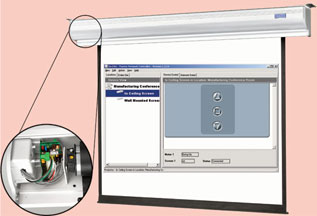

SCB-100 - The SCB-100 screen controller procides control over a screen using RS-232C communivations or an optional Ethernet controller, walltroller or infrared controller. Designed for applications where precise screen control and monitoring capabilities are cruucial, the SCB-200 is available as a factoryinstalled option in the Contour, Tensioned Contour, Advantage, Tensioned Advantage, Advantage Deluxe, Tensioned Advantage Deluxe, Director and Tensioned Director Electrols.

For multi-aspect ratio screens and other more sophisticated applications, multiple SCB-200 screen controllers may be daisy-chained for synchronous operation, while still using a single RS-232 connection or optional controller.

The SCB-100 possesses advanced position detection capabilites, or DSPS (Da-Lite Screen Positioning System), allowing for precise screen positioning. like a traditional electric screen controller, the SCB-200 allows the screen to be positioned in the fully up or down position, but also allows for dynamic positioning. As an example, the SCB-200 allows the screen to "go to 100 inches", "raise by 4 inches", or "go to 5x4 aspect ratio".

Specifications:
I/O Ports:
2x RS-232C ports
5v IR Interface (normally used with the IR-200 infrared sensor)
12v IR Interface (normally used with the WC-200 wall controller or aftermarket IR sensor)
RS-485 bus (Used to daisy chain multiple SCB-200 screen controllers).

Termination Type: Captive Screw Terminals
Power Requirements: 100-240 VAC, 50 or 60 Hz
Fuse protection: 10A

Optional Accessories

NET-200 Ethernet Controller
The Ethernet Controller is a snap-on daughterboard to the SCB-200 that allows a direct Ethernet connection to the SCB-200 controlled screen. The controller extends the control capabilities of the SCB-200 to almost any network enabled computer or control system in a LAN or WAN environment using standard TCP/IP protocol and an available 10Base-T or 100Base-TX Ethernet connection.

WC-200 Wall Controller
Powered from the SCB-200, the WC-200 is a Decora style wall controller designer for simple installation and sophisticated control. Functions such as screen up, down and stop are available, as well as more advanced functionality such as preset and custom aspect ratios. The WC-200 also possesses an IR receiver for use with the RM-200 infrared remote control eliminating the need for a separate IR receiver.

IR-200 Infrared Remote Control
The IR-200 includes the RM-200 14-button infrared transmitter and an infrared receiver for wireless control over SCB-200 equipped screens. Basic functions such as screen up, down and stop are available, as are more sophisticated functions such as preset and custom aspect ratios.
